N27Q120 (cgo) Grain Oriented Electrical Steel 0.27mm
- Grade: N27Q120
- Type: CGO Steel
- Thickness: 0.27 mm
- core loss:Max.core loss P1.7/50/(w,kg):1.19
- magnetic induction: Min.induction(T):1.82
- Min lamination factor:95
- Density(kg/dm3):7.65
- Width: 900 – 1000 mm
Magnetic Performance Curves (50Hz, Sinusoidal Excitation)

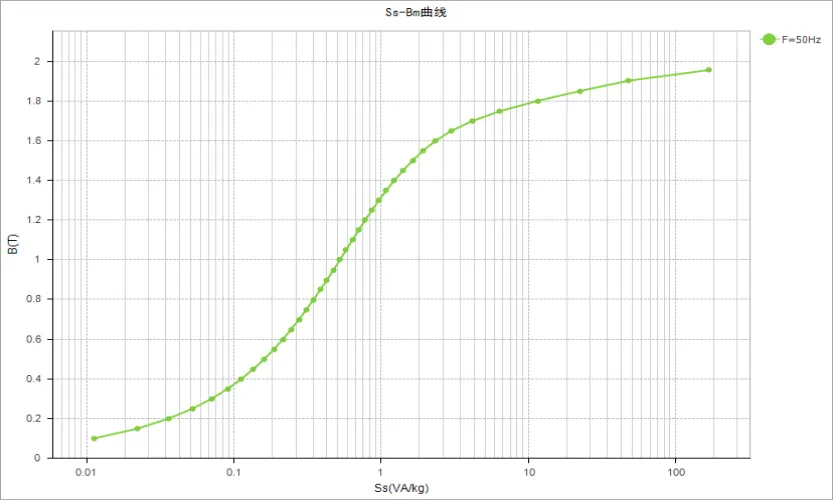

Ss-Bm curve (Excitation Apparent Power)
Ss–Bm Curve (Magnetizing Apparent Power)
Test Conditions & Sample Data (50Hz, Sinusoidal Excitation)
Sample ID: 27-120
Mass: 495.97 g
Density: 7.65 g/cm³
Length: 500 mm
Number of Sheets: 1
Cross-sectional Area: 1.2967 cm²
Magnetization Waveform: Sinusoidal
Harmonics: None
DC Magnetic Field: None
N27Q120 CRGO Steel Features & Applications
• Type: 0.27mm conventional grain oriented electrical steel for transformer cores
• Key properties: Excellent cost efficiency, easy processing, stable magnetic performance, standard core loss (Ps = 0.7507 W/kg @ 1.5T), moderate excitation power (Ss = 1.6405 VA/kg @ 1.5T)
• Primary applications: General main power transformers, distribution transformers, new energy transformer cores, and widely used conventional electrical equipment
