N27Q110(CGO) Grain Oriented Electrical Steel
- Grade: N27QG110
- Type:High Magnetic Steel
- Thickness: 0.27 mm
- core loss:Max.core loss P1.7/50/(w,kg):1.09
- magnetic induction: Min.induction(T):1.82
- Min lamination factor:95
- Density(kg/dm3):7.65
- Width: 900 – 1000 mm
Magnetic Performance Curves (50Hz, Sinusoidal Excitation)

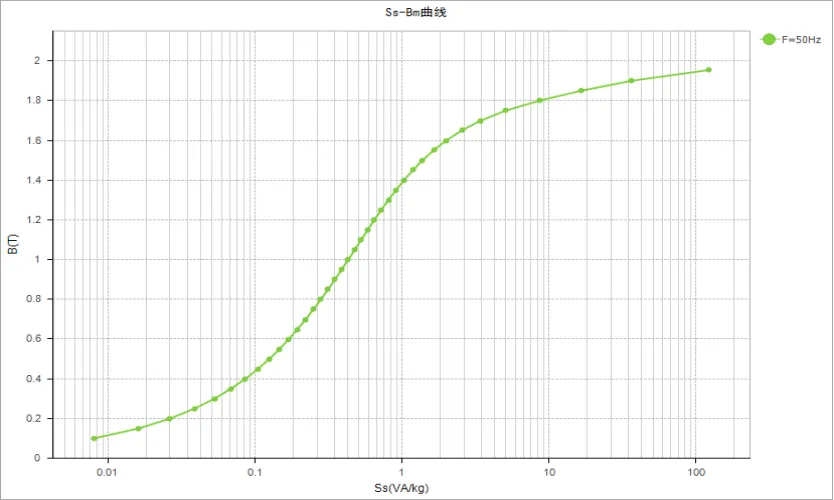

Ss-Bm curve (Excitation Apparent Power)
Ps–Bm Curve (Magnetizing Apparent Power)
Test Conditions & Sample Data (50Hz, Sinusoidal Excitation)
Sample ID: 27-110
Mass: 493.97 g
Density: 7.65 g/cm³
Length: 500 mm
Number of Sheets: 1
Cross-sectional Area: 1.2896 cm²
Magnetization Waveform: Sinusoidal
Harmonics: None
DC Magnetic Field: None
N27QG110 CRGO Steel Features & Applications
• Type: 0.27mm conventional grain oriented electrical steel for transformer cores
• Key properties: Cost-effective material, easy processing, excellent stacking efficiency, stable core loss (Ps = 0.7077 W/kg @ 1.5T), moderate excitation power (Ss = 1.3742 VA/kg @ 1.5T), reliable magnetic performance
• Primary applications: Main power transformers, distribution transformers, new energy transformer cores, and general-purpose electrical equipment with standard energy consumption requirements
