China's Leading Grain Oriented Electrical (CRGO) Steel Manufacturer| over 100,000 tons sold annually

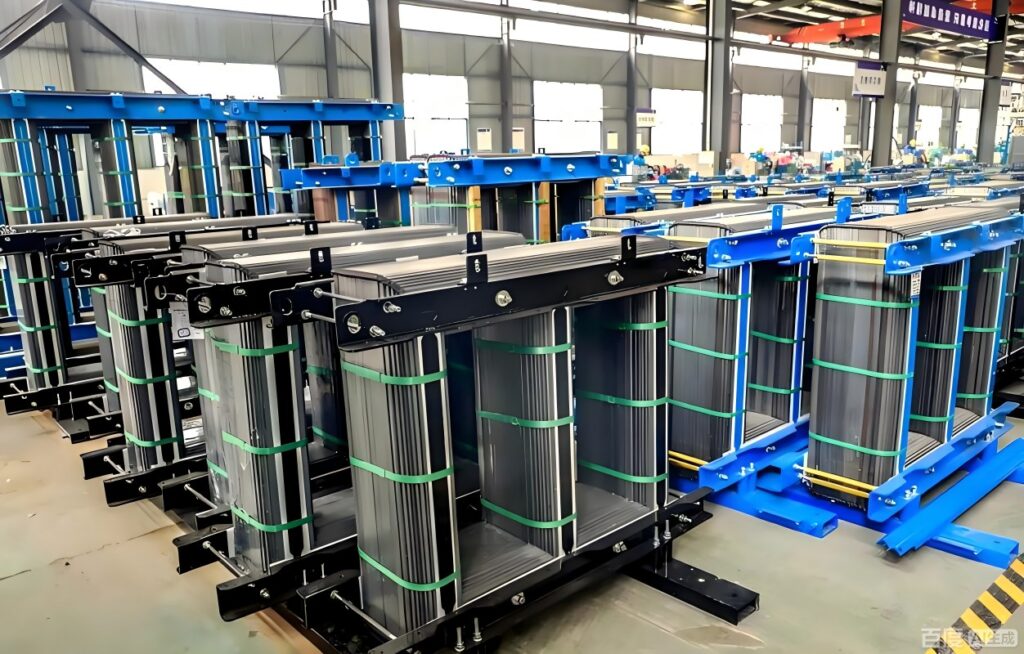

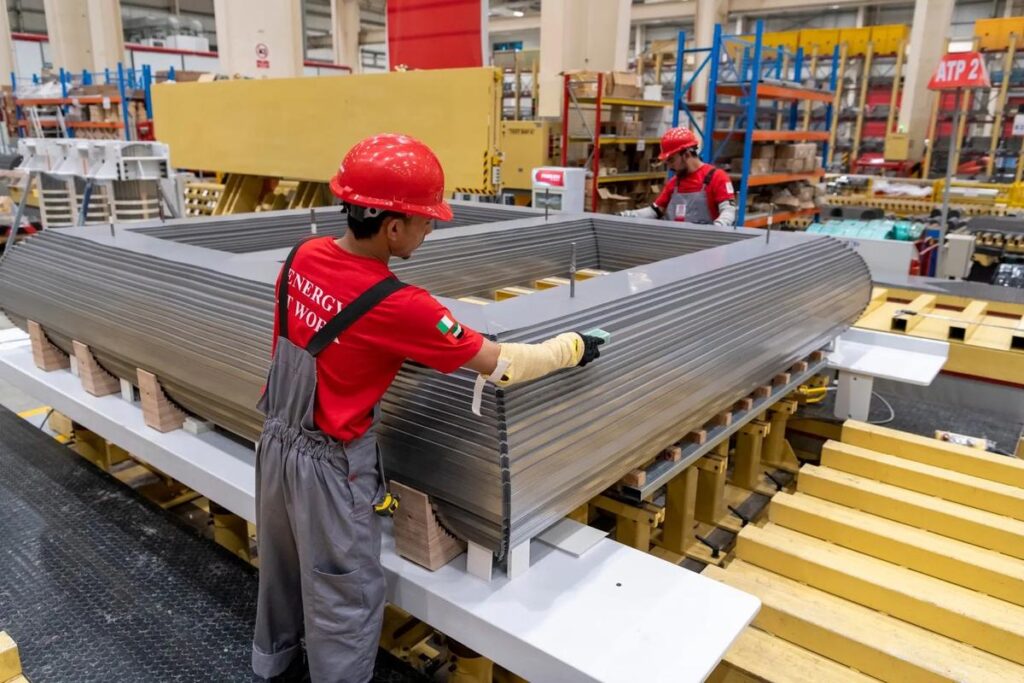

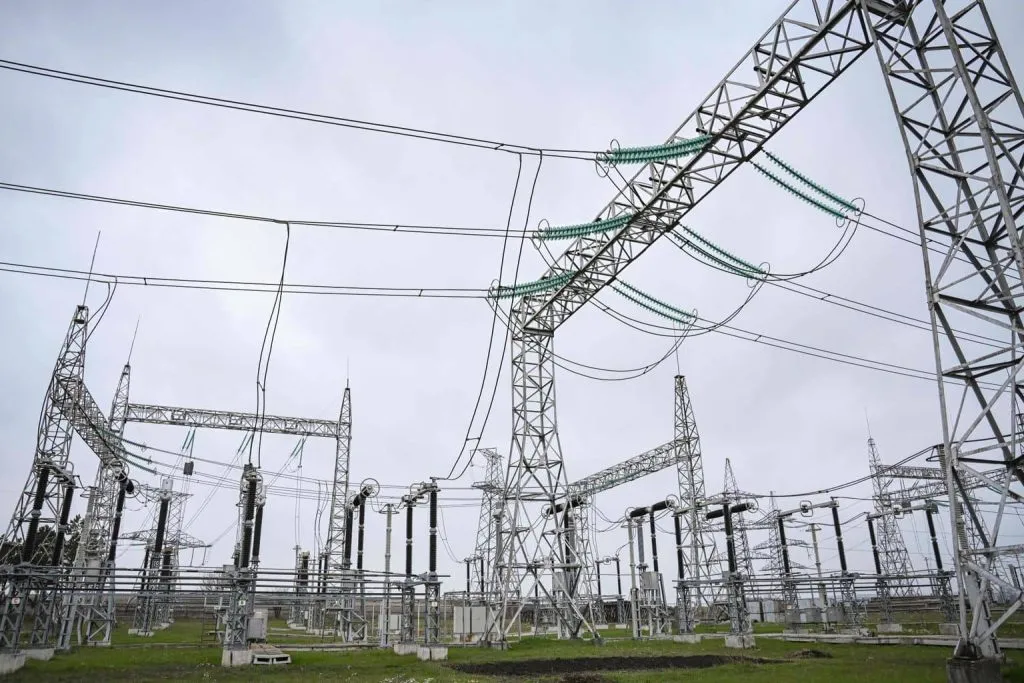

Essential core materials for power, distribution, and instrument transformers
- Thickness: 0.23mm/0.27mm
- Grade: HiB & CGO (Up to 23Q085 / 27Q120)
- Compliance: Fully compliant with IEC & GB/T
China Grain Oriented Electrical (CRGO) Steel Manufacturer | over 100,000 tons sold annually
Essential core materials for power, distribution, and instrument transformer
- Thickness: 0.23mm/0.27mm
- Grade: Up to 23Q085 / 27Q120
- Compliance: compliant with IEC & GB/T
Founded in 2005
120,000 tons of production capacity
125,000 ㎡ Factory
National Little Giant Enterprise
New Wanxin is recognized by China’s Ministry of Industry and Information Technology as a national leader in specialized, sophisticated, and innovative manufacturing , It is awarded only to the top 1% of manufacturers with irreplaceable technological breakthroughs, scale and influence
National vetted
Top 1% Manufacturer
Supply Stability

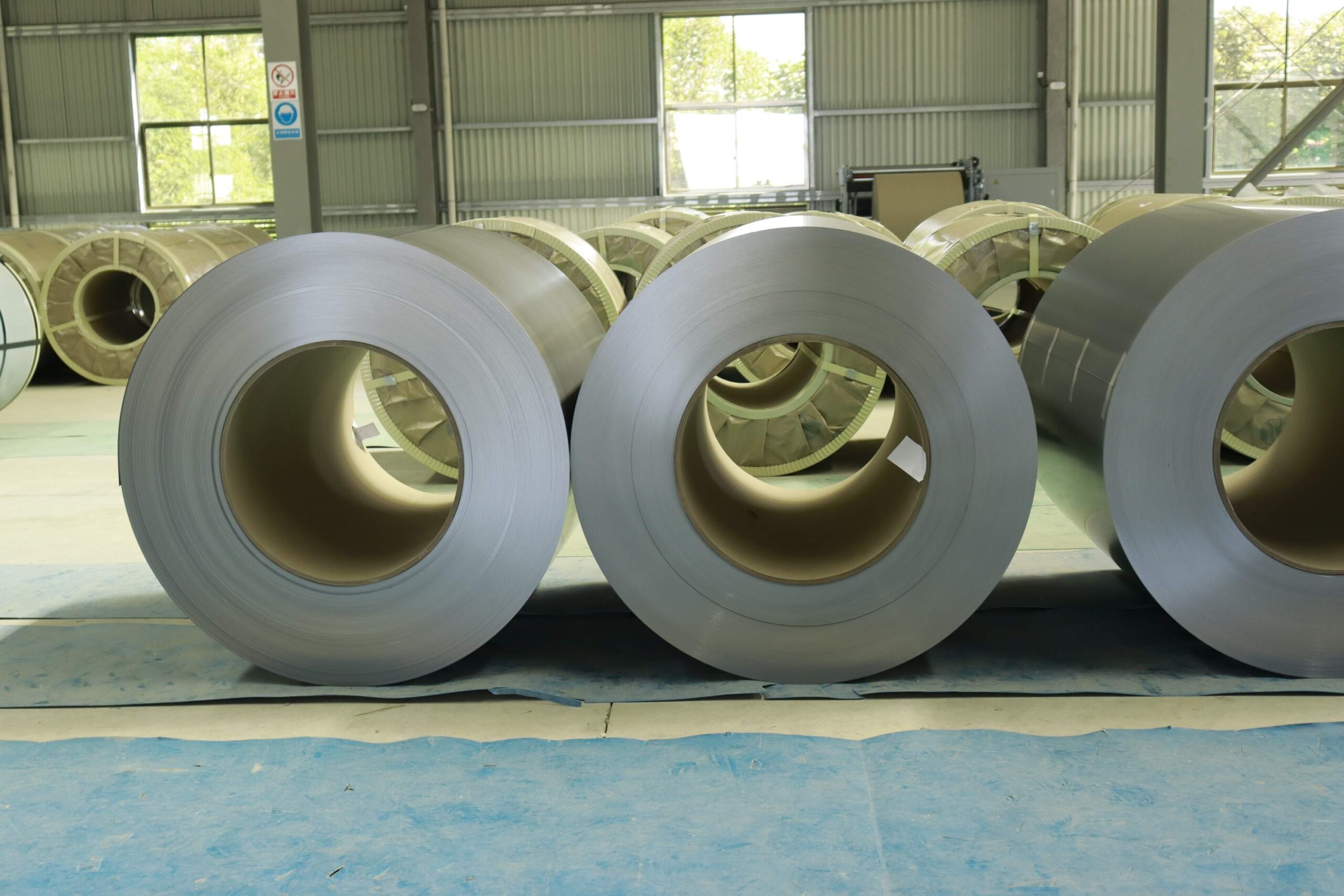

Classification of grain-oriented electrical (CGRO) steel products
Grain-oriented electrical steel (GOES) is a silicon steel material designed for transformer cores with low core loss and high magnetic permeability. We offer oriented electrical steel made from both HI-B and CGO materials, with steel belt widths ranging from 450mm to 1000mm。Meet the diverse needs of transformer manufacturers in terms of material performance and processing.

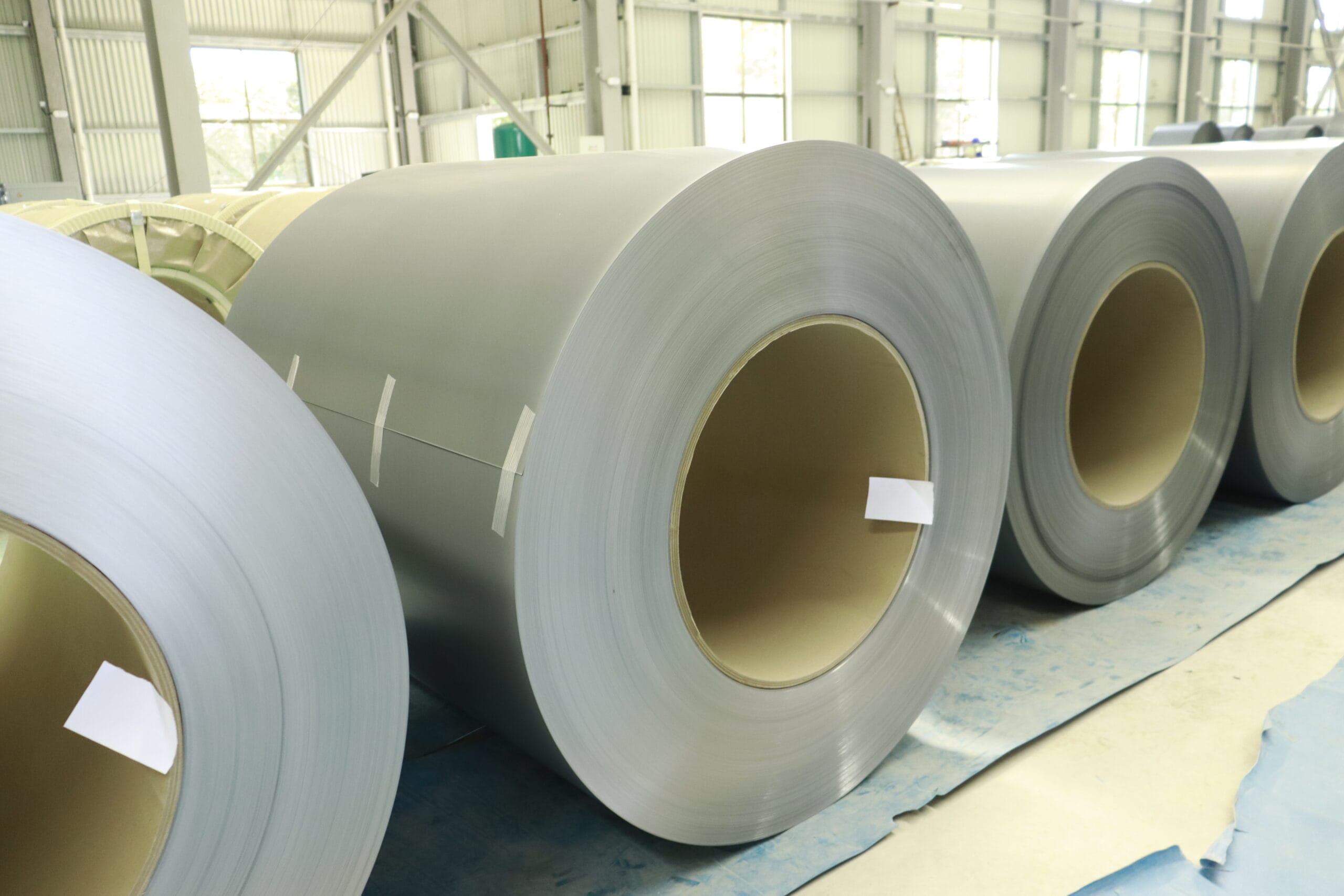

Hi-B steel
High magnetic sensitivity, low iron loss .Suitable for transformers with higher performance requirements.

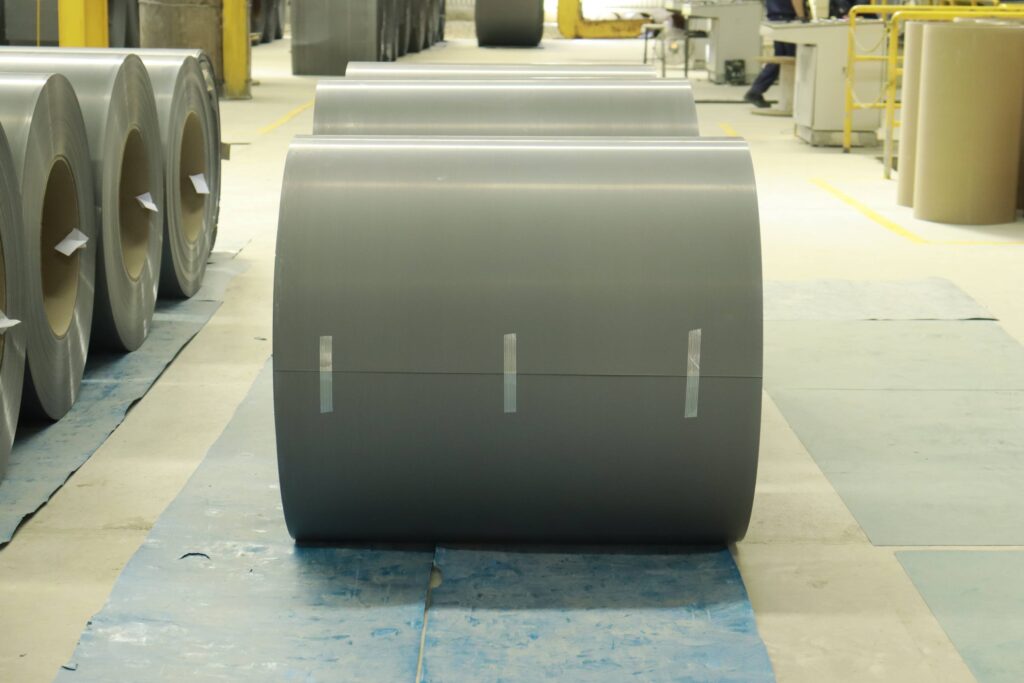

CGO steel
The magnetic properties are stable,has good processability. mainstream transformers material

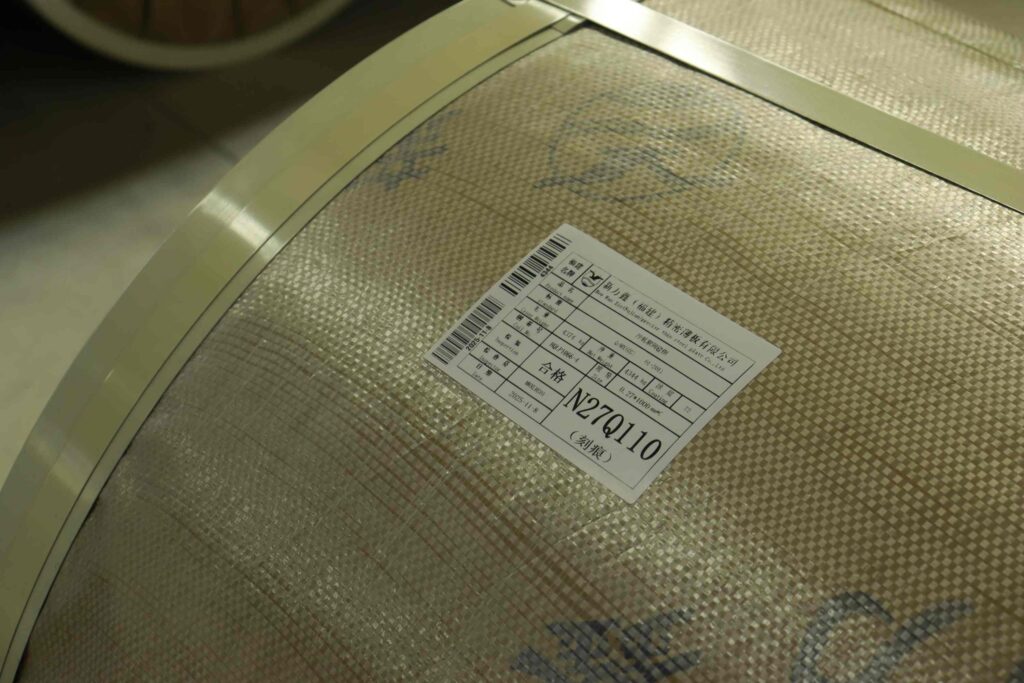

width 450-600
Applicable to cross cutting ling with a processing width less than 600 mm

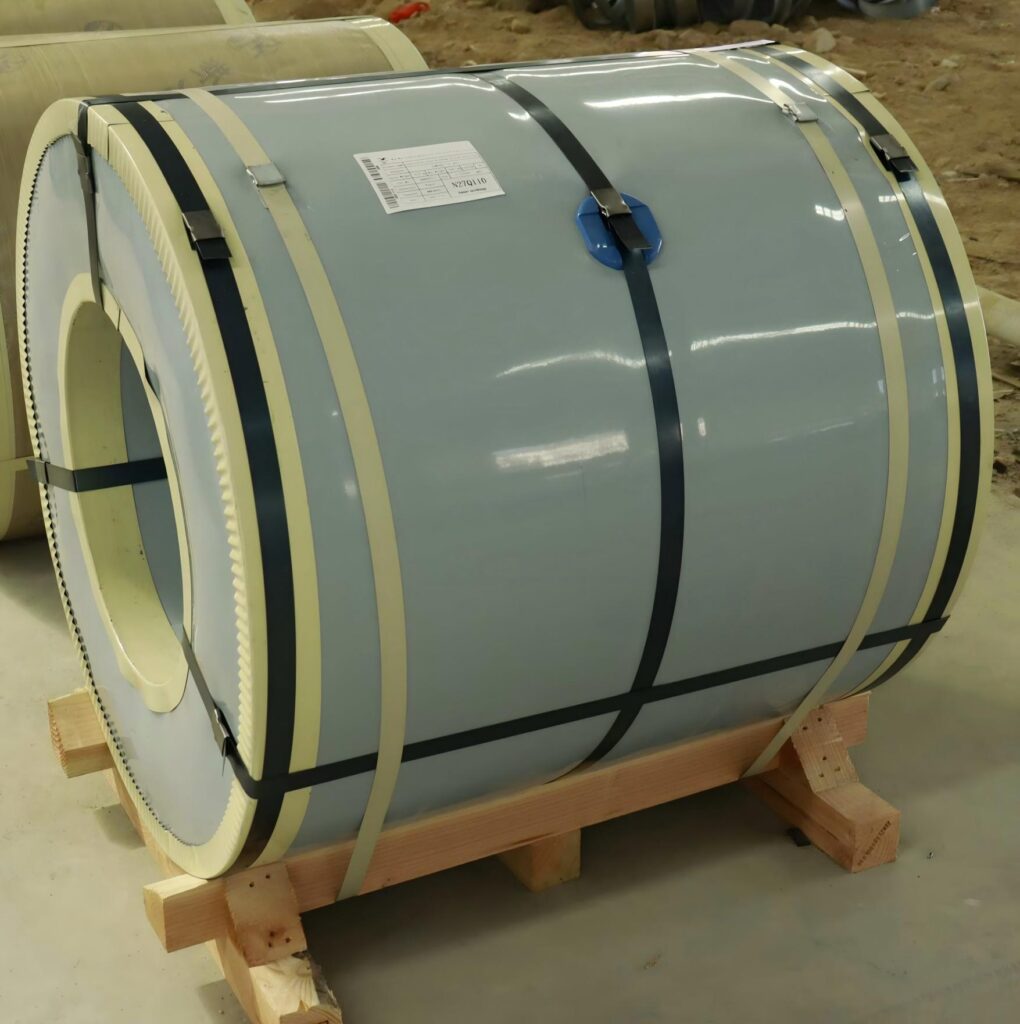

width 900-1000mm
Applicable to cross cutting ling with a processing width less than 1000 mm
CRGO steel grade Typical magnetic properties
- Max.core loss P1.7/50/(w,kg):0.99
- Min.induction(T):1.88
- Min lamination factor:95
- Density(kg/dm3):7.65
- Max.core loss P1.7/50/(w,kg):1.09
- Min.induction(T):1.88
- Min lamination factor:95
- Density(kg/dm3):7.65
- Max.core loss P1.7/50/(w,kg):1.99
- Min.induction(T):1.88
- Min lamination factor:95
- Density(kg/dm3):7.65
- Max.core loss P1.7/50/(w,kg):0.89
- Min.induction(T):1.88
- Min lamination factor:95
- Density(kg/dm3):7.65
- Max.core loss P1.7/50/(w,kg):0.99
- Min.induction(T):1.88
- Min lamination factor:95
- Density(kg/dm3):7.65
- Max.core loss P1.7/50/(w,kg):1.09
- Min.induction(T):1.88
- Min lamination factor:95
- Density(kg/dm3):7.65

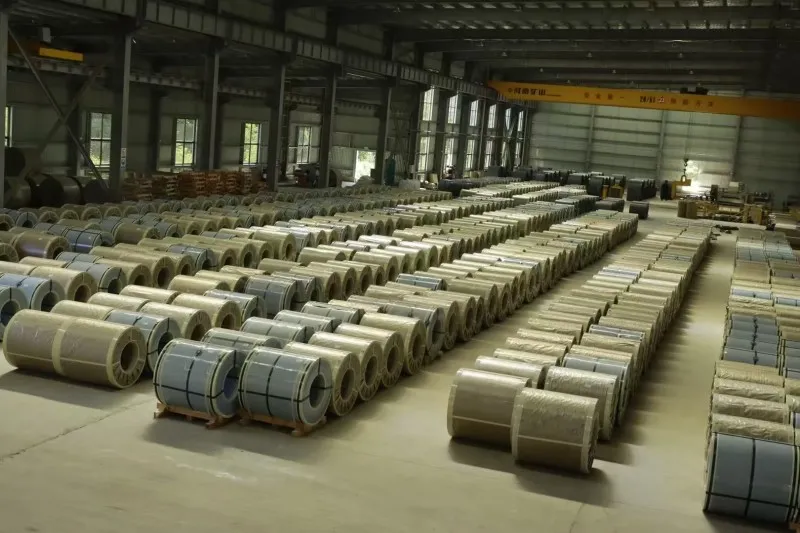

Reliable CRGO Steel Supplier with Large Stock & Fast Delivery

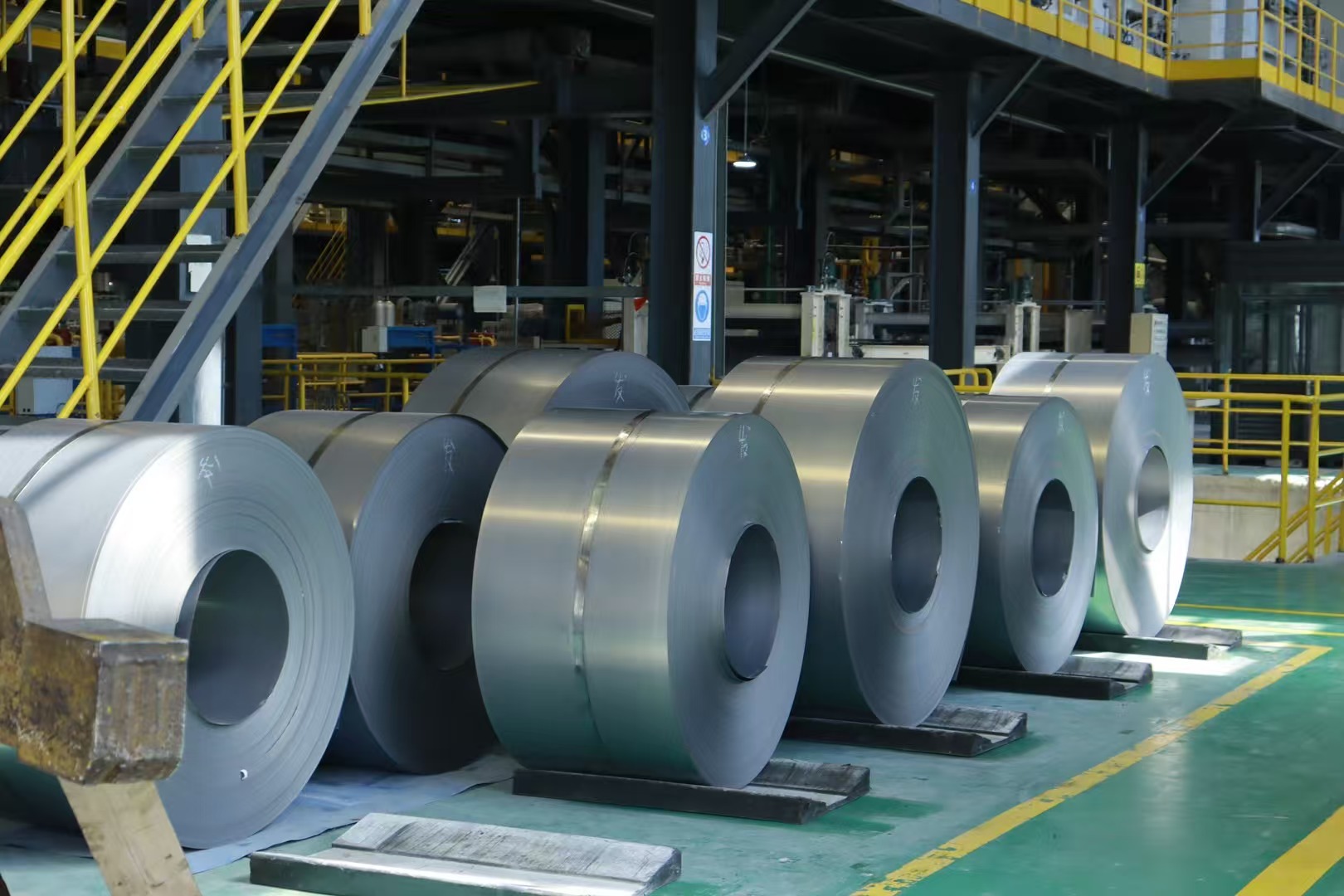

Newwanxin is a reliable CRGO steel supplier with strong production and warehouse capacity.We produce 300 tons daily and keep over 1,500 tons in stock for fast delivery.Flexible options in grades, core loss, magnetic induction, widths, and weights to meet different transformer production needs.
Dimensional and Geometric Tolerance Specifications for Newwanxin
| Width (mm) | Thickness (mm) | Thickness Tolerance (mm) | Traverse Thickness Tolerance (mm) | Width Tolerance (mm) | Camber within 2m (mm) | Flatness (%) | Inside Diameter (mm) |
|---|---|---|---|---|---|---|---|
|
450 ≥ 620 900 ≥ 1000 | 0.23 | -0.025 | ≤ 0.02 | 0 -- 0.5 | ≤ 1 | ≤ 1.5 | 508 |
| 0.27 | 0.03 |

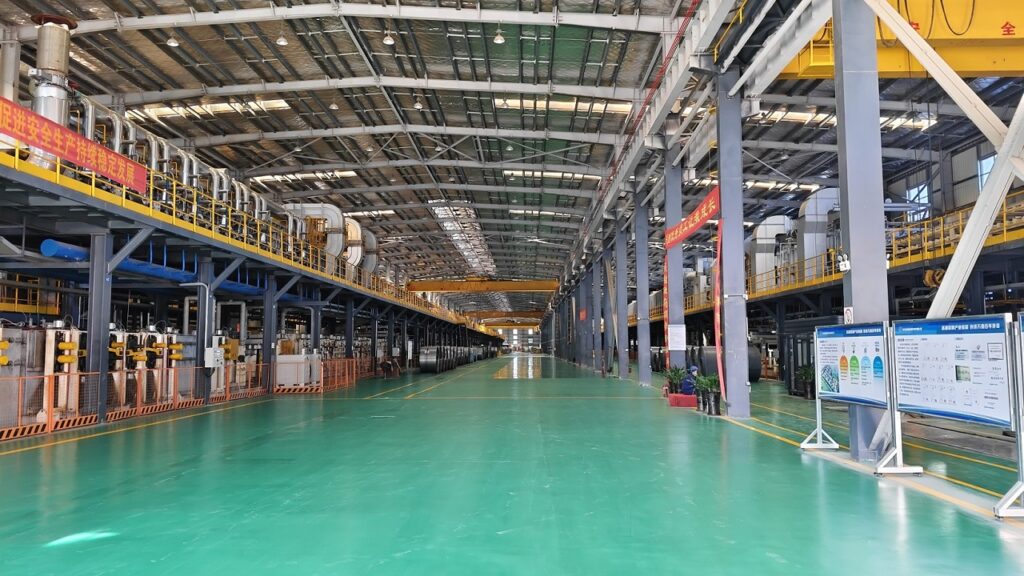

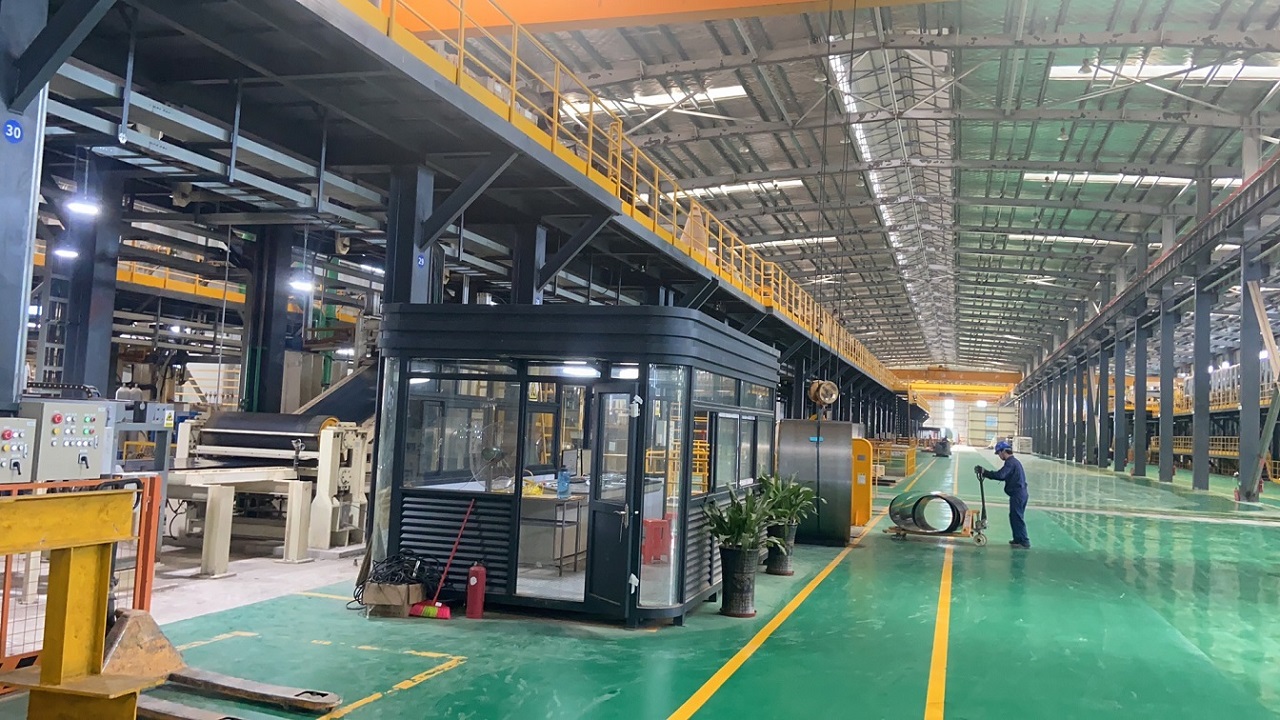

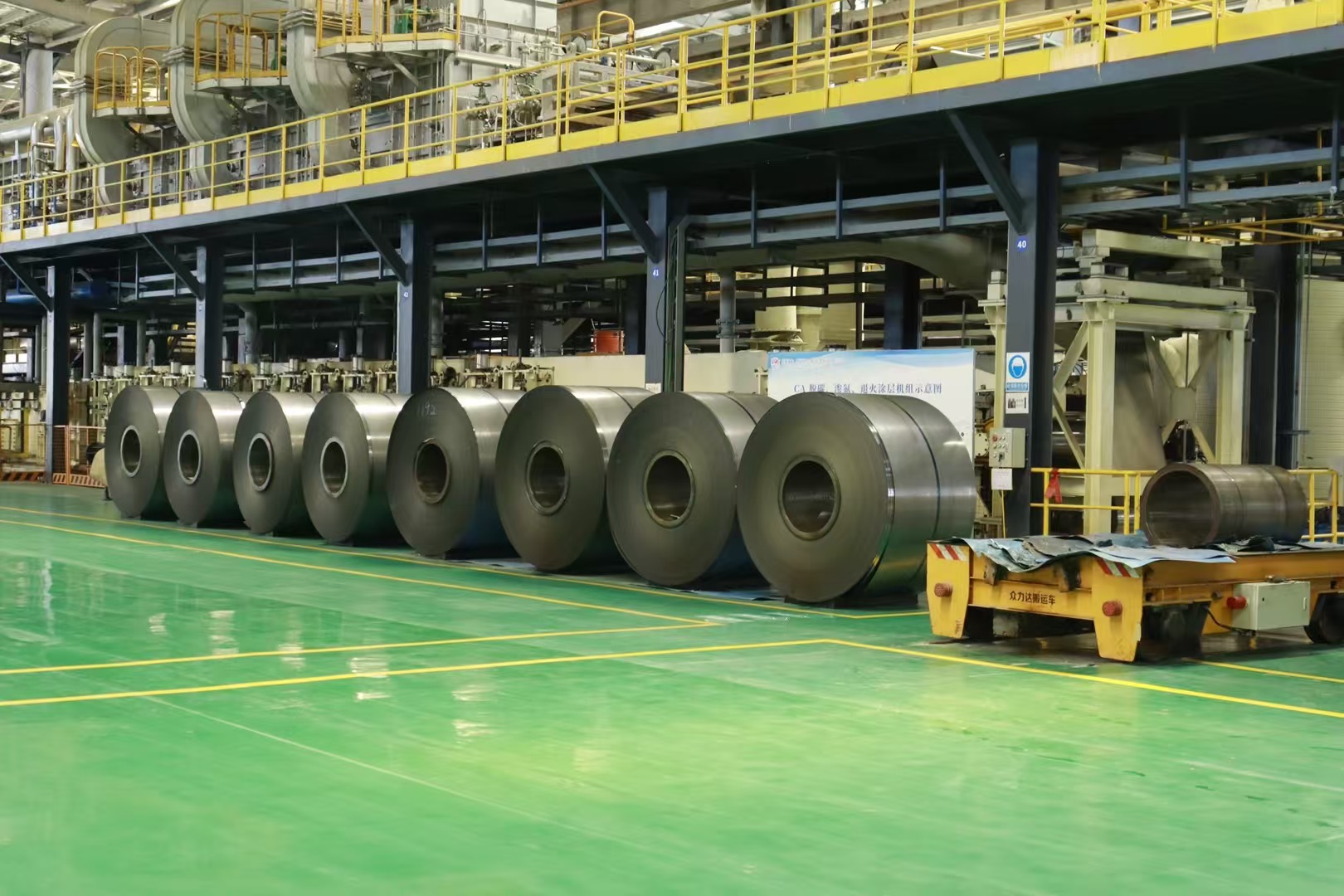

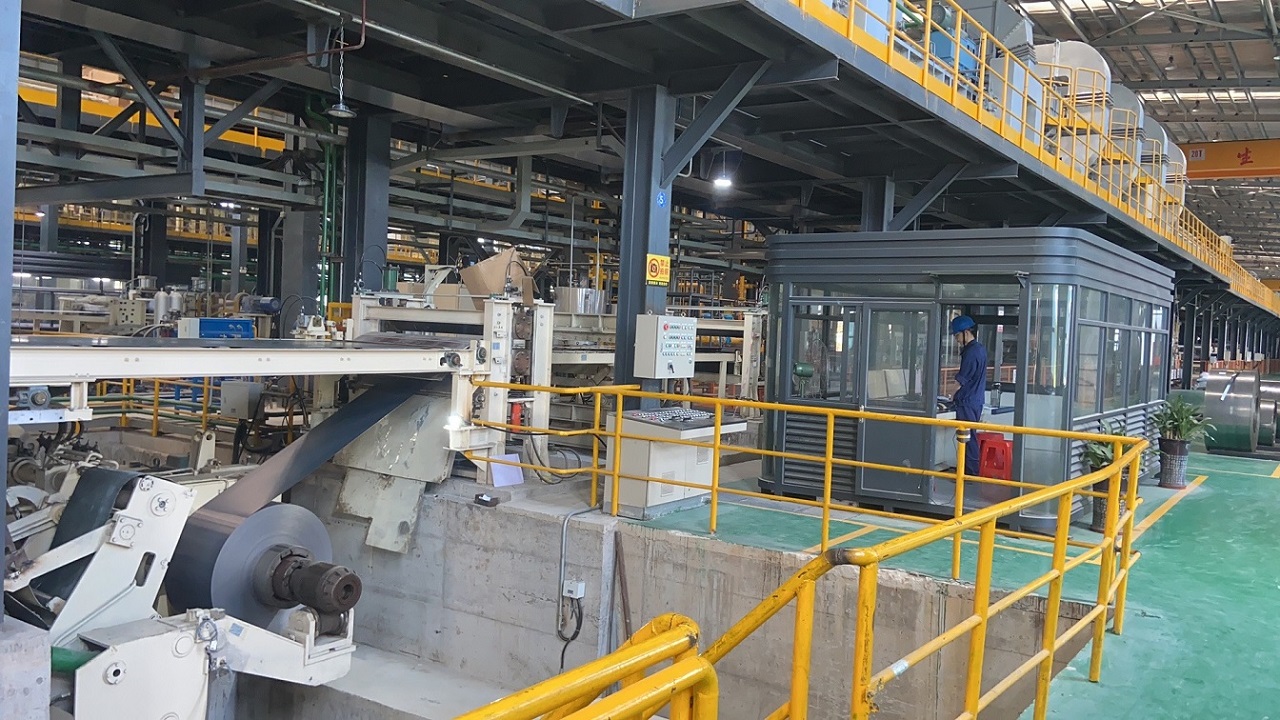

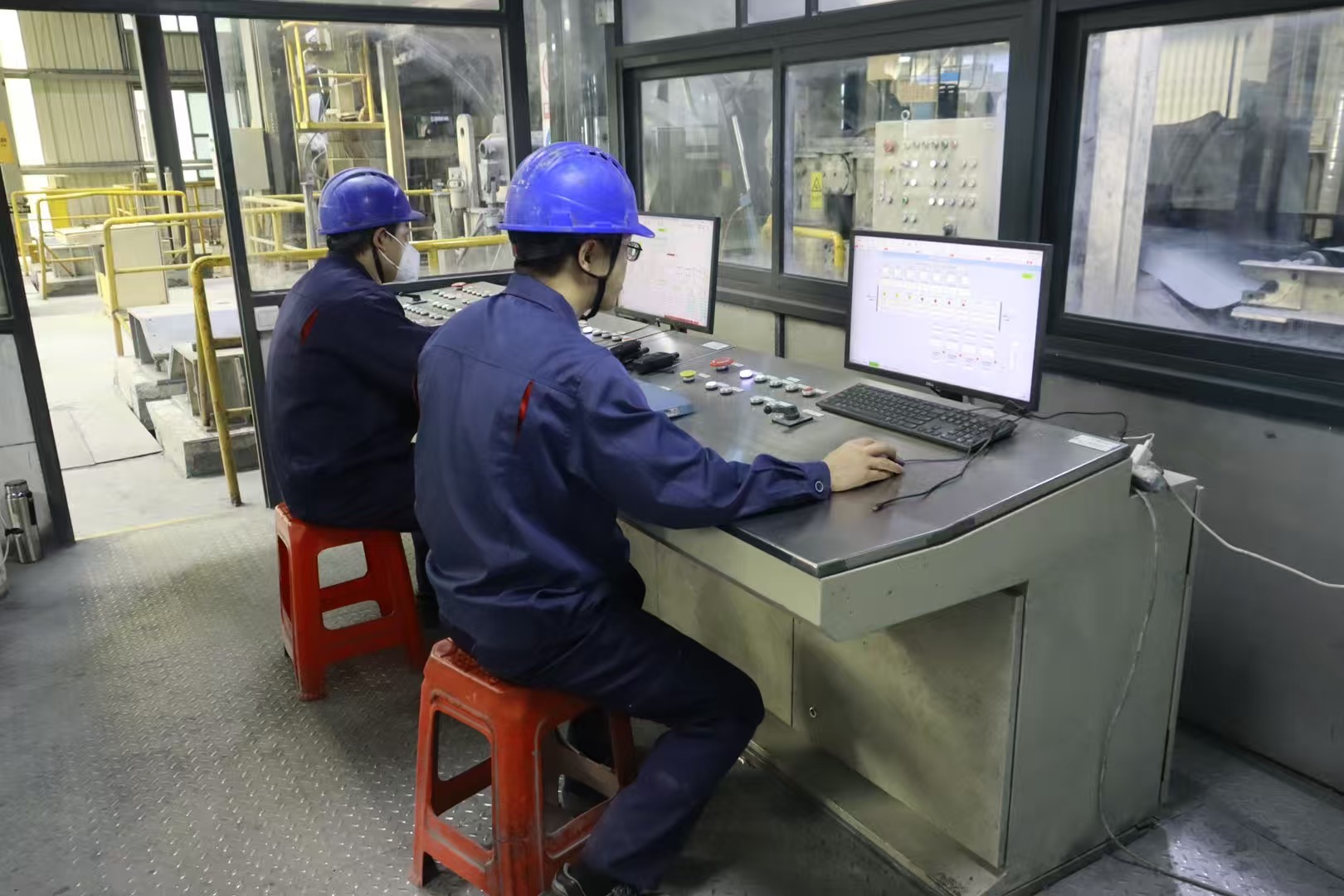

Grain oriented Electrical (CRGO) steel production workshop
Decarburizing nitriding coating line
Carbon content is controlled below 0.003%, forming a dense, uniform SiO₂ film on the strip surface
Magnesium oxide isolation coating
Prevent the bonding during high-temperature annealin, forms a magnesium silicate glass film layer.,reducing iron loss

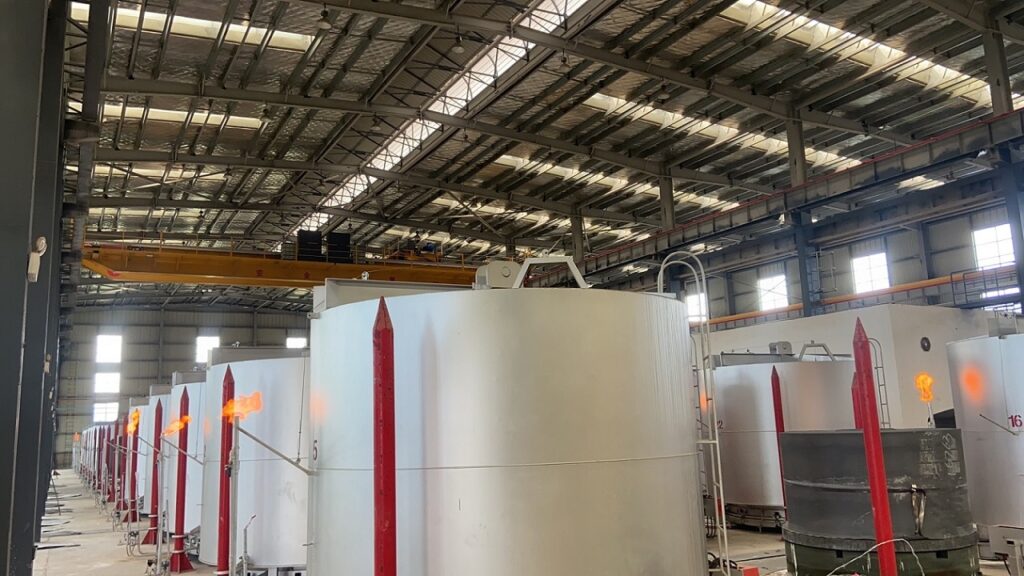

High temperature annealing
Carbon content is reduced to below 0.003% (30 ppm) to eliminate magnetic aging and form a dense, uniform silicon dioxide surface film

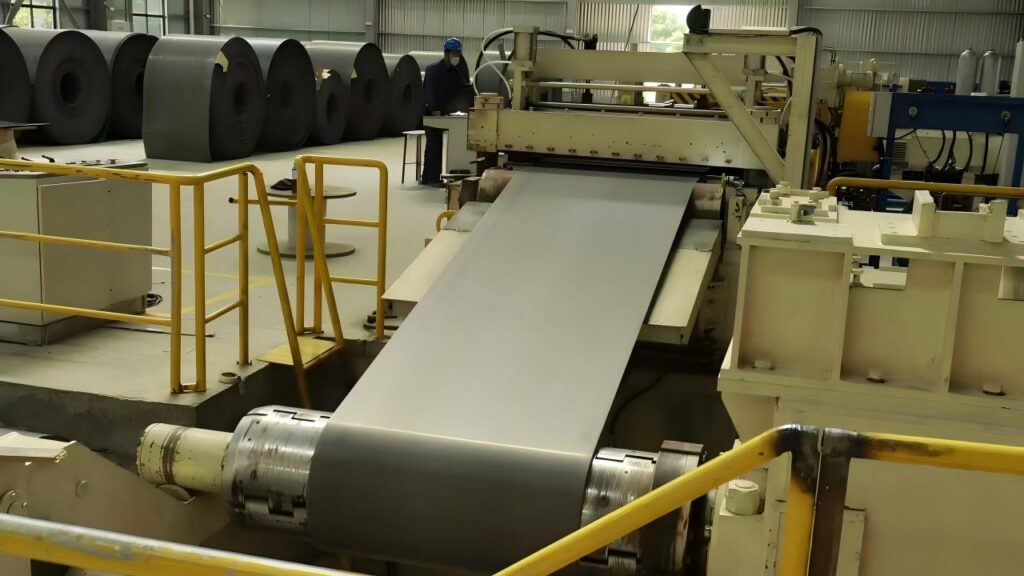

Finishing slitting line
Edge trimming and removal of surface defects. The weight of each roll is controlled to be within 4.5T, ensuring uniformity of the entire roll’s grade.
Newwanxin – A Reliable Global Partner for Transformer Core Materials
21 Years of Singular Focus
Since 2005, we have dedicated 100% of our R&D to CRGO technology. Our deep specialization ensures our experts understand the exact magnetic nuances required for high-efficiency transformer cores.
National "Little Giant" Enterprise
Formally recognized for industrial excellence and reliability. This status guarantees a vetted supply chain, stable financial standing, and quality that passes the strictest international audits.
Direct-to-Mill Access
Deal directly with factory decision-makers for transparent pricing and 24-hour technical response. We align our production cycles precisely with your project deadlines.
Integrated Full-Process Production
Equipped with the latest integrated lines from acid washing and cold rolling to laser scratching. Our process control ensures consistent magnetic induction and stable core loss across every batch, with superior flatness and high coating adhesion.
About Newwanxin
New Wanxin (Fujian) is a premier manufacturer specializing in Grain Oriented Electrical Steel (CRGO). Established in 2005, we are recognized as one of China’s pioneering private enterprises in the silicon steel industry.

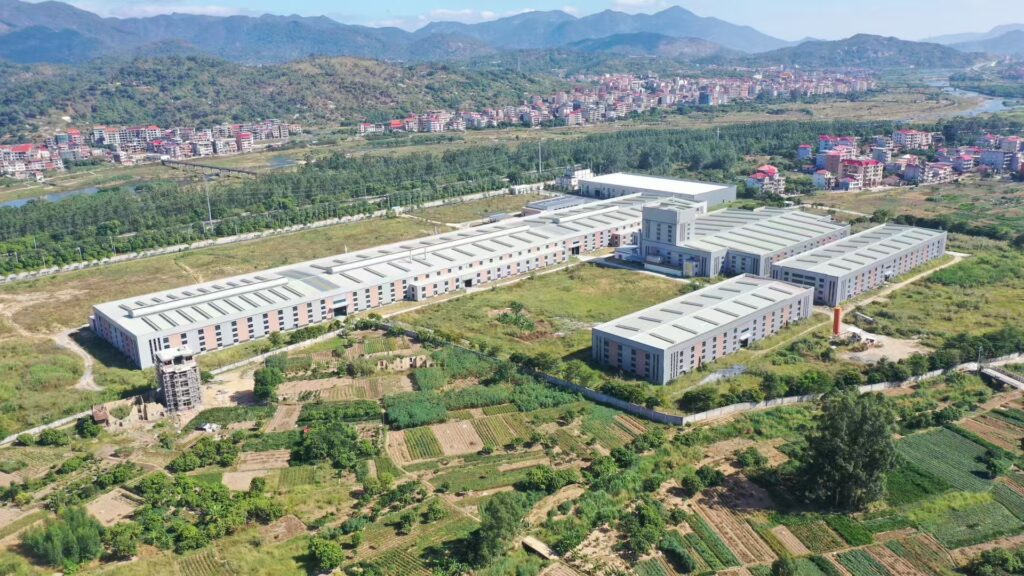

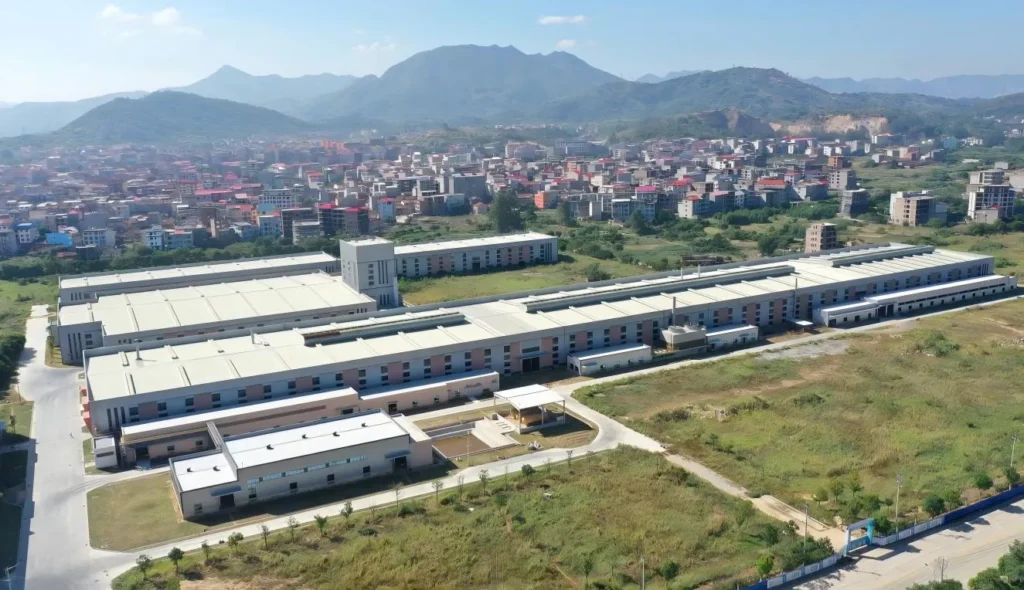

Our state-of-the-art facility in Fujian covers 125,000 and is supported by a dedicated team of 300 professionals. As a National “Little Giant” Enterprise, we operate a provincial-level technology center and a national academician workstation.
With our full-process production line commissioned in 2024, we have achieved an annual capacity of 120,000 tons. We specialize in high-performance CRGO, including our advanced HiB (High Induction) series, ensuring ultra-low core loss and superior magnetic induction for global transformer manufacturers.
Compliance certification Government Award and Recognition
CE certificate
ISO 9001
ISO 45001
ISO 14001
2012 year
Fujian Provincial Government Official Recognition for Excellent N30Q130 CRGO Steel – Newwanxin
2013 year
Fujian Science and Technology Department- CRGO Steel Engineering Research Center – Newwanxin
2015 year
National High-Tech Enterprise Accreditation for Electrical Steel Innovation and R&D
2016 year
National Demonstration Academician Expert Workstation
2018-2019 year
Putian Contract-Abiding and Trustworthy Enterprise Recognition
2019-2022 year
Fujian Provincial Academician and Expert Workstation for Advanced CRGO Steel Research
2021 year
National High-Tech Enterprise Accreditation for Electrical Steel Innovation and R&D
2021 year
Putian Municipal Government Social Responsibility Recognition for COVID-19 Donation
2024 year
Certificate from Xianyou County Government: Tax payments exceeded 10 million RMB in 2023
2025 year
CNIPA National Intellectual Property Advantage Enterprise for Silicon Steel Patents
2026 year
MIIT National Specialized and Sophisticated Little Giant Enterprise Recognition for CRGO Steel
A:We produce grain-oriented electrical steel in two material types: HIB and CGO.
Each type is available in two thicknesses: 0.23 mm and 0.27 mm.
The core loss grades cover 090, 095, 100, 110 and 120
A: We have sufficient inventory available for selection and can meet your specific requirements for core loss, magnetic induction, thickness, width, coil weight and other indicators.
A: Our products fully comply with GB/T 2521.2-2025 and IEC 60404-8-7 standards
A: We have 20 years of experience in producing grain-oriented electrical steel. In 2024, we built a brand-new full-process production line covering normalizing scale removal, denitrification annealing, cold rolling, and T1 & T2 coating. Our production experience and advanced processing equipment guarantee stable and consistent product quality

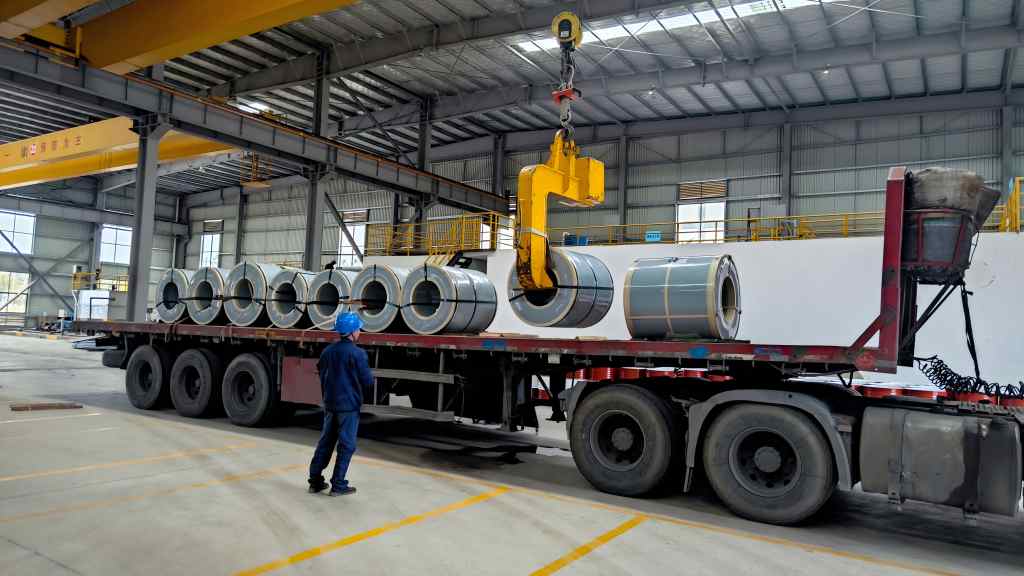

A: The nearest ports to us are Xiamen Port and Shanghai Port. We can deliver goods to the loading port within 5 working days.
A: We can provide cut-to-length services, but this will incur additional costs.
Find large-scale grain oriented electrical (CRGO) steel factories in China, to obtain materials at better prices
