N23QG090High Magnetic (HIB) Grain Oriented Electrical Steel 0.23mm
- Grade: N23QGO90
- Type:High Magnetic Steel
- Thickness: 0.23 mm
- core loss:Max.core loss P1.7/50/(w,kg):0.90
- magnetic induction: Min.induction(T):1.89
- Min lamination factor:95
- Density(kg/dm3):7.65
- Width: 900 – 1000 mm
Magnetic Performance Curves (50Hz, Sinusoidal Excitation)

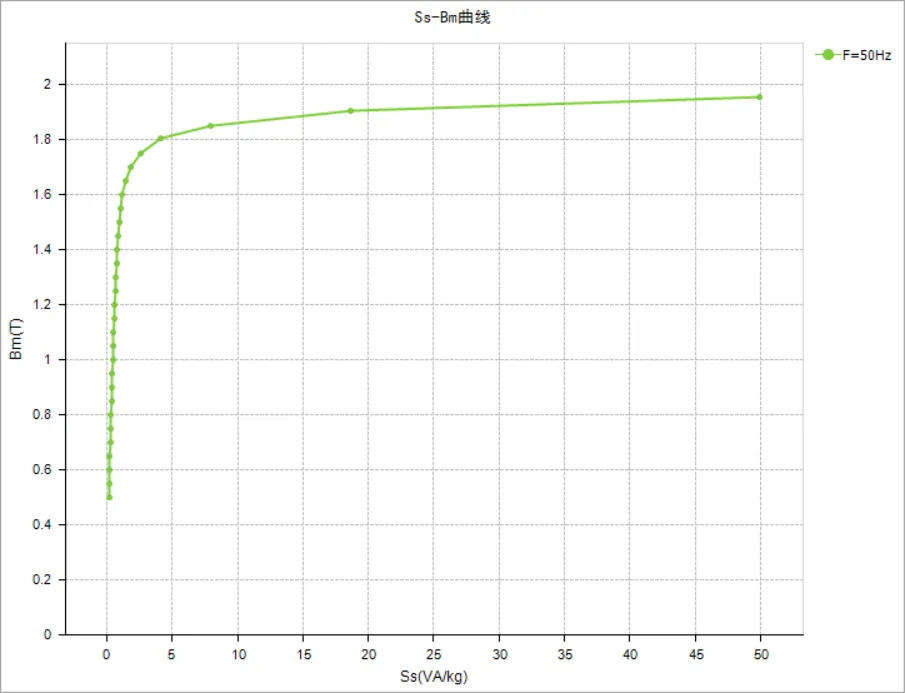

Ss-Bm curve (Excitation Apparent Power)

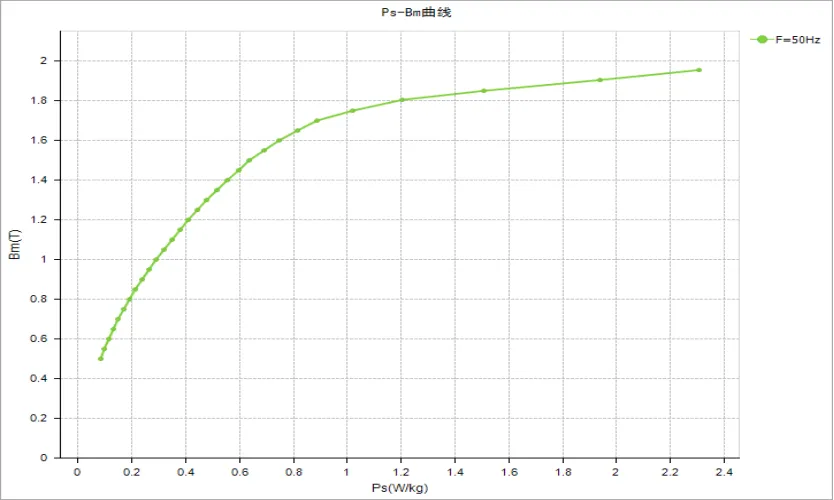

ps–Bm Curve (Magnetizing Apparent Power)
Test Conditions & Sample Data (50Hz, Sinusoidal Excitation)
Sample ID: 23-095
Mass: 398.22 g
Density: 7.65 g/cm³
Length: 500 mm
Number of Sheets: 1
Cross-sectional Area: 1.04111cm²
Magnetization Waveform: Sinusoidal
Harmonics: None
DC Magnetic Field: None
N23QG090 CRGO Steel Features & Applications
Product Features & Applications:
• Type: 0.23mm high-induction CRGO steel for transformer core Laminations
• Key properties: Low iron loss (Ps ≤ 0.6129 W/kg @ 1.5T), low excitation power (Ss ≤ 0.9117 VA/kg @ 1.5T), high magnetic permeability
• Primary applications: Industrial power transformers, new energy step-up transformers, dry-type transformer cores, and high-performance reactors
