N27QG095High Magnetic (HIB) Grain Oriented Electrical Steel 0.27mm
- Grade: N27QGO95
- Type:High Magnetic Steel
- Thickness: 0.23 mm
- core loss:Max.core loss P1.7/50/(w,kg):0.95
- magnetic induction: Min.induction(T):1.88
- Min lamination factor:95
- Density(kg/dm3):7.65
- Width: 900 – 1000 mm
Magnetic Performance Curves (50Hz, Sinusoidal Excitation)

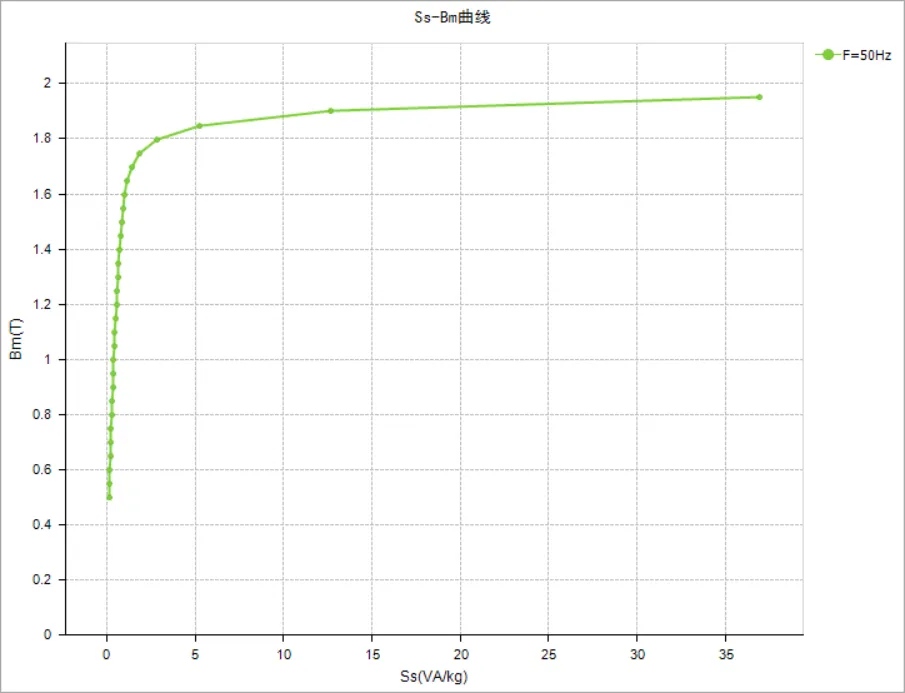

Ss-Bm curve (Excitation Apparent Power)

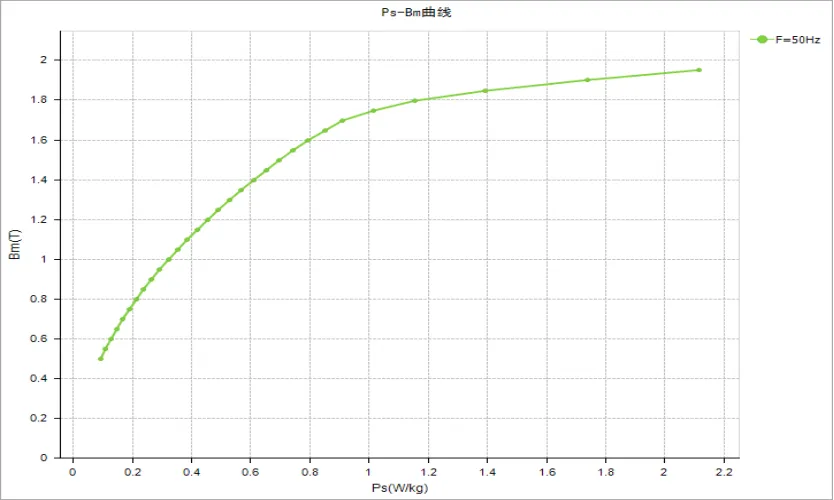

Ps–Bm Curve (Magnetizing Apparent Power)
Test Conditions & Sample Data (50Hz, Sinusoidal Excitation)
Sample ID: 27-95
Mass: 469.41 g
Density: 7.65 g/cm³
Length: 500 mm
Number of Sheets: 1
Cross-sectional Area: 1.2272 cm²
Magnetization Waveform: Sinusoidal
Harmonics: None
DC Magnetic Field: None
N27QG095 CRGO Steel Features & Applications
• Type: 0.27mm conventional grain oriented electrical steel for transformer core
• Key properties: Good magnetic stability, moderate core loss (Ps ≤ 0.6937 W/kg @ 1.5T), low excitation power (Ss ≤ 0.8438 VA/kg @ 1.5T), high saturation magnetic induction and cost-effective performance
• Primary applications: Medium & small distribution transformers, general power transformer cores, electrical control transformers, and mainstream high-efficiency electrical equipment
